Pompa Pelumasan Minyak Berat
POMPA PELUMASAN MINYAK BERAT
Pompa Pelumasan Minyak Berat / Pompa Pelumasan Minyak Berat VOP -
| MODEL | Kapasitas aliran (c.c/rew) |
Pemasangan | Tipe Dapat Disetel | Pengembalian oli eksternal | Rentang tekanan kgf/cm² |

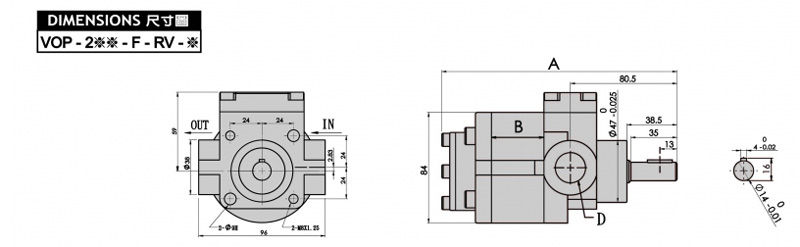

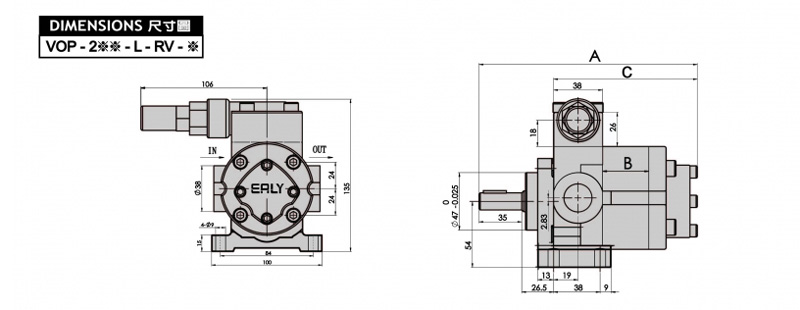

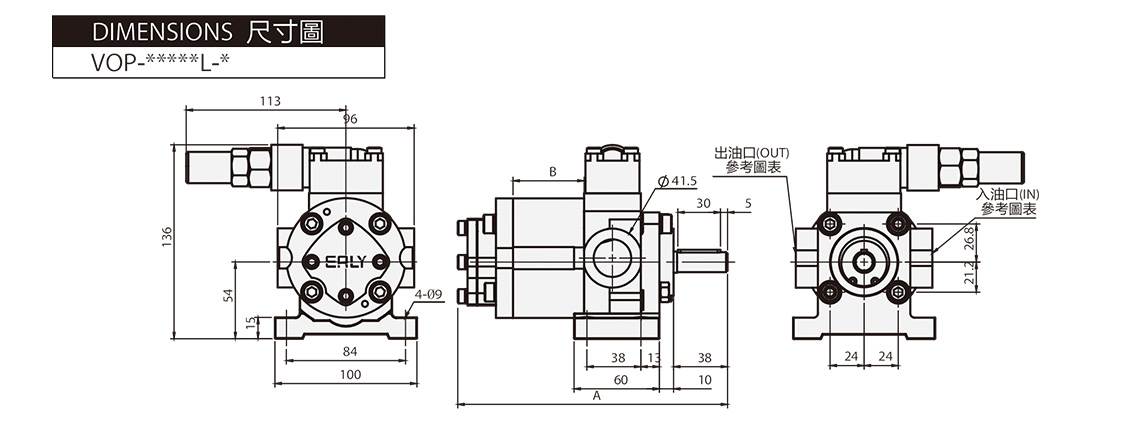

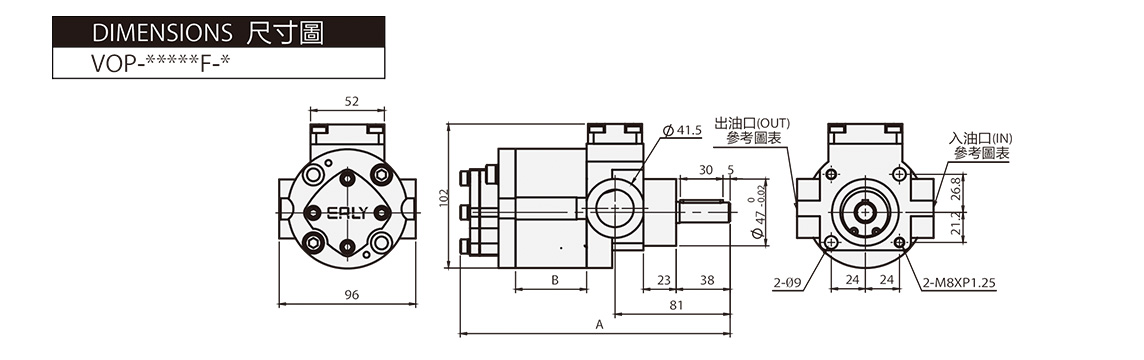

Ukuran panjang | ||
|---|---|---|---|---|---|---|---|---|
| VOP-2 | VOP-2** | Flow | -* | -RV | -D | -* | A | B |
| VOP-2 | VOP-203 | 3 | F : Flensa L : Kaki |
None RV |
None : Spesifikasi Standar D : Pengembalian Oli Eksternal |
A：3~8 kgf/cm² B：5~20 kgf/cm² C：12~25 kgf/cm² |
145 | 83 |
| VOP-204 | 4 | 148 | 86 | |||||
| VOP-206 | 6 | 153 | 91 | |||||
| VOP-208 | 8 | 158 | 96 | |||||
| VOP-210 | 10 | 160 | 101 | |||||
| VOP-212 | 12 | 168 | 106 | |||||
| VOP-216 | 16 | 178 | 116 | |||||
| VOP-220 | 20 | 188 | 126 | |||||
VOP Kecepatan–Laju Aliran
| Model | Kapasitas aliran (c.c/rew) | Tekanan Maks kgf/cm² |
Kecepatan Maks (rpm) | ||
|---|---|---|---|---|---|
| Kecepatan Putaran ( rpm ) | |||||
| cc/rev | 1500 | 1800 | |||
| VOP-203 | 3 | 4.5 | 5.4 | 25 | 1800 |
| VOP-204 | 4 | 6.0 | 7.2 | ||
| VOP-206 | 6 | 9.0 | 10.8 | ||
| VOP-208 | 8 | 12.0 | 14.4 | ||
| VOP-210 | 10 | 15.0 | 18.0 | ||
| VOP-212 | 12 | 18.0 | 21.6 | ||
| VOP-216 | 16 | 24.0 | 28.8 | ||
| VOP-220 | 20 | 30.0 | 36.0 | ||
