Pompa Pelumasan Minyak Berat
POMPA PELUMASAN MINYAK BERAT

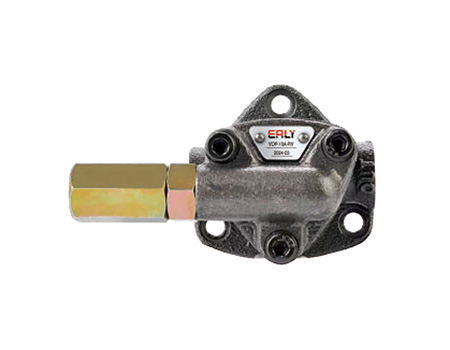

Pompa Pelumasan Minyak Berat / Pompa Pelumasan Minyak Berat VOP - 1A
| MODEL | Kapasitas aliran (c.c/rew) |
Maks. rpm | Tekanan Maks kgf/cm² |
BERAT kgf | ||
|---|---|---|---|---|---|---|
| c.c/rev | 1500/rpm | 1800/rpm | ||||
| VOP-10A | 0.8 | 1.2 | 1.4 | 3000 | 5 kgf/cm² | 0.5 ( 0.8 ) |
| VOP-11A | 1.5 | 2.2 | 2.7 | 3000 | 0.5 ( 0.8 ) | |
| VOP-12A | 2.5 | 3.7 | 4.5 | 1800 | 0.6 ( 0.9 ) | |
| VOP-13A | 4.5 | 6.7 | 8.1 | 1800 | 0.8 ( 1.1 ) | |
