Pompa Vane Displacement Tetap
POMPA VANE DISPLACEMENT TETAP
Pompa Vane Displacement Tetap / Pompa Tetap Tekanan Tinggi / PV2R1 - ( PV2R2 )
| MODEL | Kapasitas aliran (c.c/rew) |
Pemasangan | Arah putaran |
Bagian keluaran ( Ujung poros ) |
Bagian hisap ( Ujung penutup ) |
Kode desain |
|---|---|---|---|---|---|---|
| PV2R* | * | * | * | * | * | -* |
| PV2R1 | 6 ~ 31 | F : Flensa L : Kaki |
R : CW L : CCW |
A : Atas B : Bawah R : Sisi kanan L : Sisi kiri |
A : Atas B : Bawah R : Sisi kanan L : Sisi kiri |
10 |
| PV2R2 | 26 ~ 65 |
| BERAT / Model | PV2R1 | PV2R2 | |
|---|---|---|---|
| BERAT kgf ( lbs ) | F : Flensa | 9.2 kg | 18.2 kg |
| L : Kaki | 10.7 kg | 23 kg | |
Kecepatan MAKS : 1800 r / min
Kecepatan MIN : 800 r / min

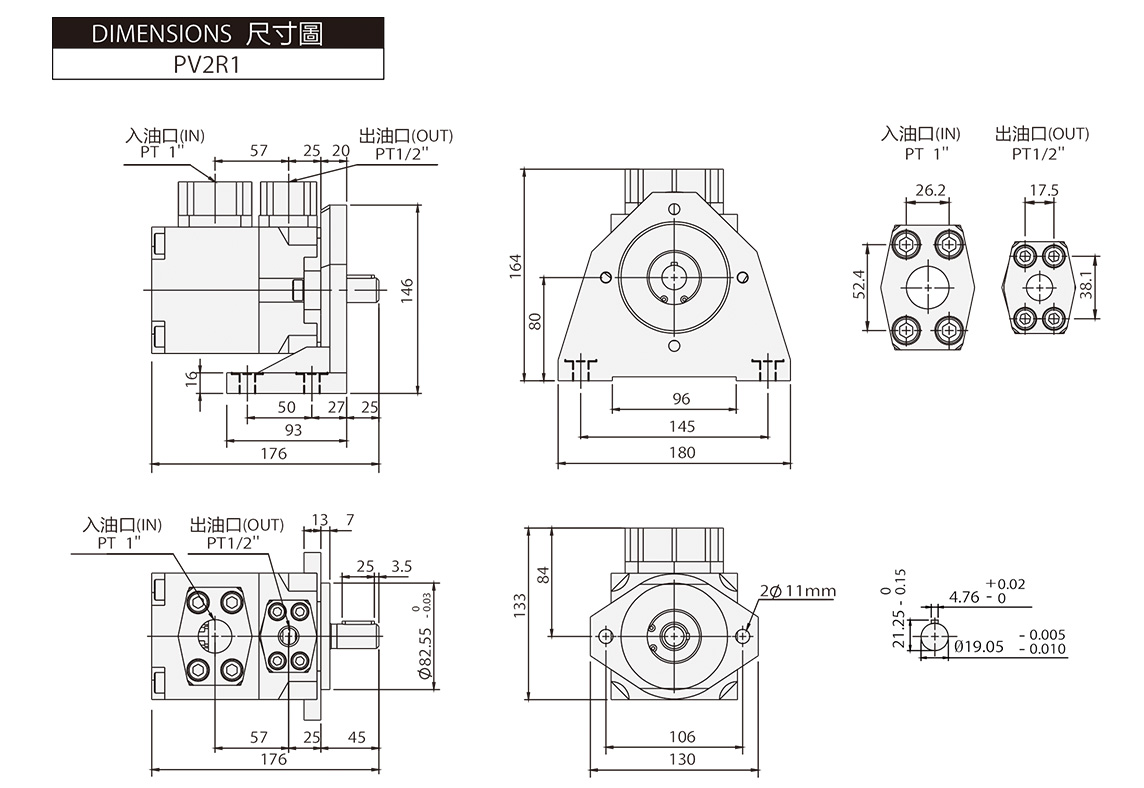

PV2R1
| MODEL | Kapasitas aliran (c.c/rew) | Kecepatan Putar yang diizinkan ( rpm ) |
Tekanan Maks kgf/cm² |
Masuk / Keluar | ||||
|---|---|---|---|---|---|---|---|---|
| Kecepatan Putaran ( rpm ) | Maks | Min | ||||||
| 1000 | 1200 | 1500 | 1800 | |||||
| PV2R1-06 | 5.8 | 6.9 | 8.7 | 10.4 | 1800 | 1200 | 210 | Masuk : 1" Keluar : 1/2" |
| PV2R1-08 | 8.1 | 9.7 | 12.1 | 14.6 | ||||
| PV2R1-10 | 9.4 | 11.3 | 14.1 | 16.9 | ||||
| PV2R1-12 | 12.2 | 14.6 | 18.3 | 21.9 | 1800 | 900 | ||
| PV2R1-14 | 13.6 | 17.1 | 21.5 | 25.7 | ||||
| PV2R1-17 | 16.6 | 20.5 | 25.6 | 30.7 | ||||
| PV2R1-19 | 18.6 | 23 | 28.8 | 34.5 | ||||
| PV2R1-23 | 22.7 | 27.9 | 34.9 | 41.9 | ||||
| PV2R1-25 | 25.3 | 31.3 | 39.1 | 46.9 | ||||
| PV2R1-31 | 31 | 37.3 | 46.6 | - | ||||

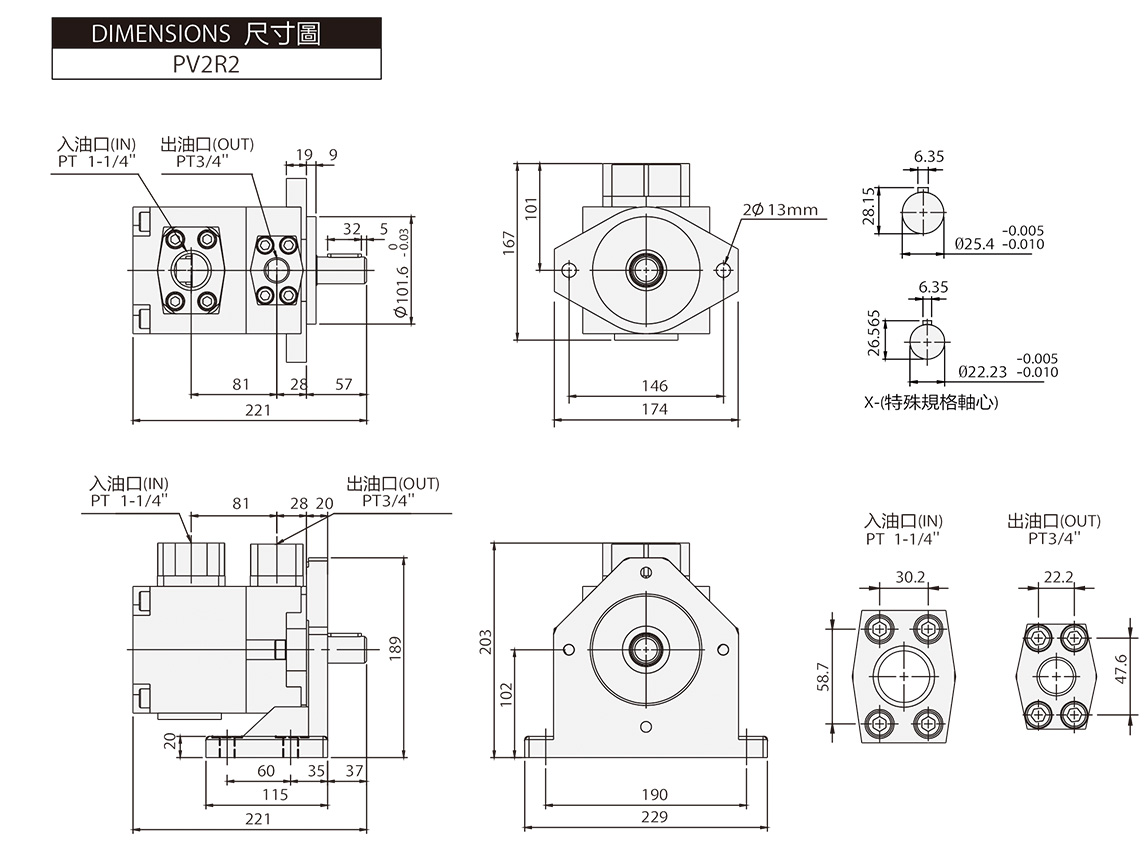

PV2R2
| MODEL | Kapasitas aliran (c.c/rew) | Kecepatan Putar yang diizinkan ( rpm )/th> | Tekanan Maks kgf/cm² |
Masuk / Keluar | ||||
|---|---|---|---|---|---|---|---|---|
| Kecepatan Putaran ( rpm ) | Maks | Min | ||||||
| 1000 | 1200 | 1500 | 1800 | |||||
| PV2R2-26 | 26.2 | 31.4 | 39.3 | 47.1 | 1800 | 900 | 210 | Masuk : 1-1/4" Keluar : 3/4" |
| PV2R2-33 | 33.0 | 38.5 | 48.1 | 57.7 | ||||
| PV2R2-38 | 38.2 | 45.8 | 57.3 | 68.7 | ||||
| PV2R2-41 | 41.3 | 49.2 | 61.5 | 73.8 | ||||
| PV2R2-47 | 47.2 | 57.8 | 71.4 | 86.7 | ||||
| PV2R2-53 | 52.3 | 62.7 | 78.4 | 94.1 | ||||
| PV2R2-59 | 60.2 | 72.7 | 90.3 | 108.3 | ||||
| PV2R2-65 | 65.3 | 78.3 | 97.9 | 117.5 | ||||
