Variable Displacement Vane Pumps

VARIABLE DISPLACEMENT VANE PUMPS

Variable Displacement Vane Pumps / Low-Pressure Variable Displacement Pumps / VPHE-

FEATURES
  • Save horse power and low noise level
  • Wear and heat resistance
  • High volume efficiency
  • Smooth running and stable operation particular suitable for machine tools and single-purple machines
Specifications
MODEL Mounting No-load delivery
I/min
( 1800 rpm ) 		Adjusting pressure range
kgf/cm²		 Design number WEIGHT
kgf ( lbs )
F : Flange L : Foot
VPHE- -F * * - * 7.6 kg \
VPHE- F : Flange 18
25
30
35
40		 A : 08~18 kgf/cm²
B : 15~35 kgf/cm²
C : 30~55 kgf/cm²
D : 50~70 kgf/cm²		 -10

Speed MAX : 1800 r / min
Speed MIN : 800 r / min

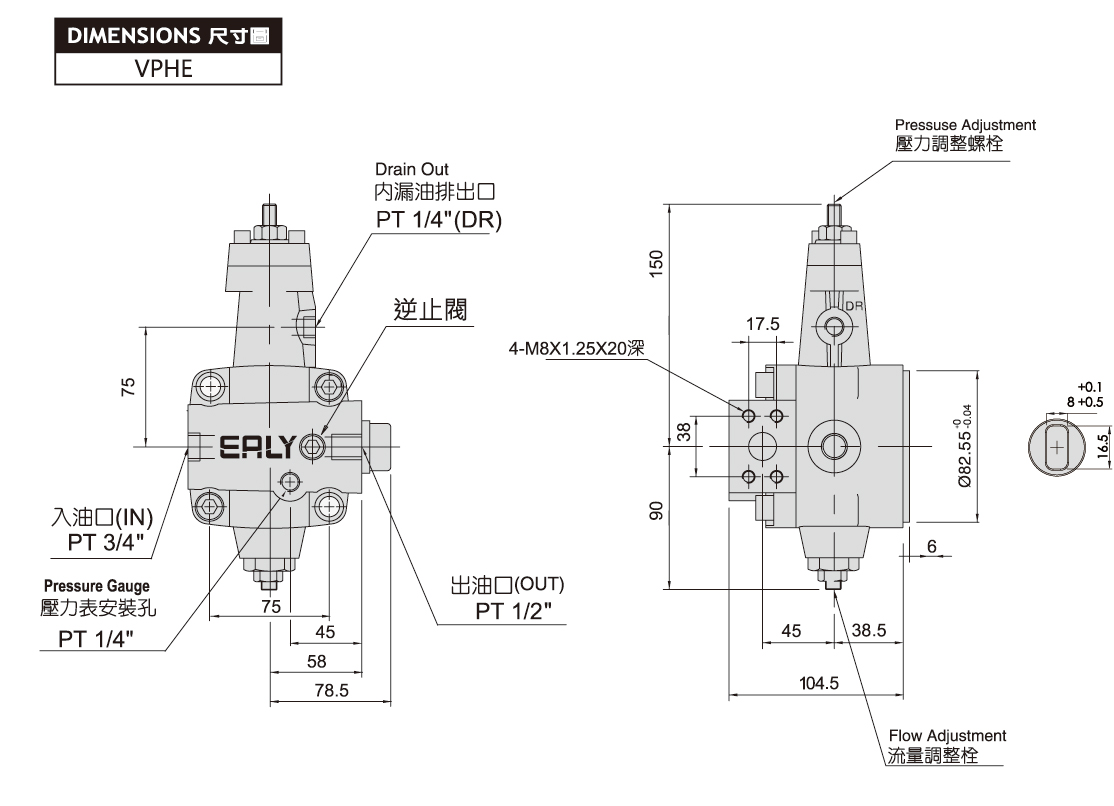

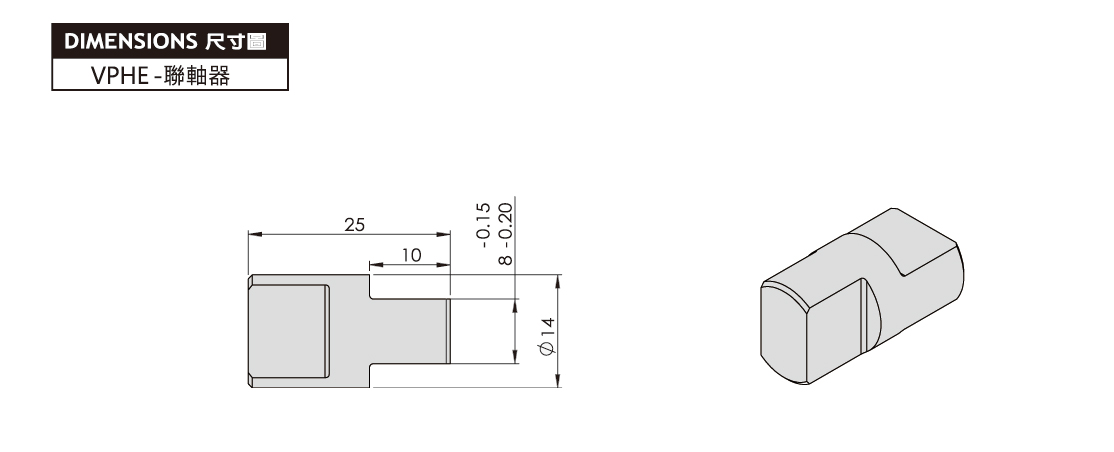

Dimensions
