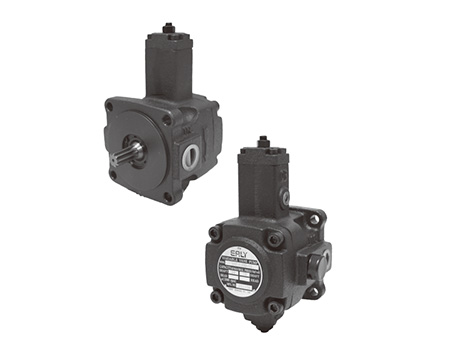

Low-Pressure Variable Displacement Pumps VPE - 25 ~ 47
Low-Pressure Variable Displacement Pumps VPE - 25 ~ 47
FEATURES
  • Save horse power and low noise level
  • Wear and heat resistance
  • High volume efficiency
  • Smooth running and stable operation particular suitable for machine tools and single-purple machines
Specifications
MODEL Mounting Standard delivery
l/min ( 1800 rpm )		 Adjusting pressure range
kgf/cm²		 Design number Weight kgf
* * * * - * F : Flange L : Foot
VPE F : Flange
L : Foot		 25
30
40		 A : 08~18 kgf/cm²
B : 15~35 kgf/cm²
C : 30~55 kgf/cm²
D : 50~70 kgf/cm²		 10 : Parallel Key
9T : Spline		 9 kg /
47 10 : Parallel Key

Speed MAX : 1800 r / min
Speed MIN : 800 r / min

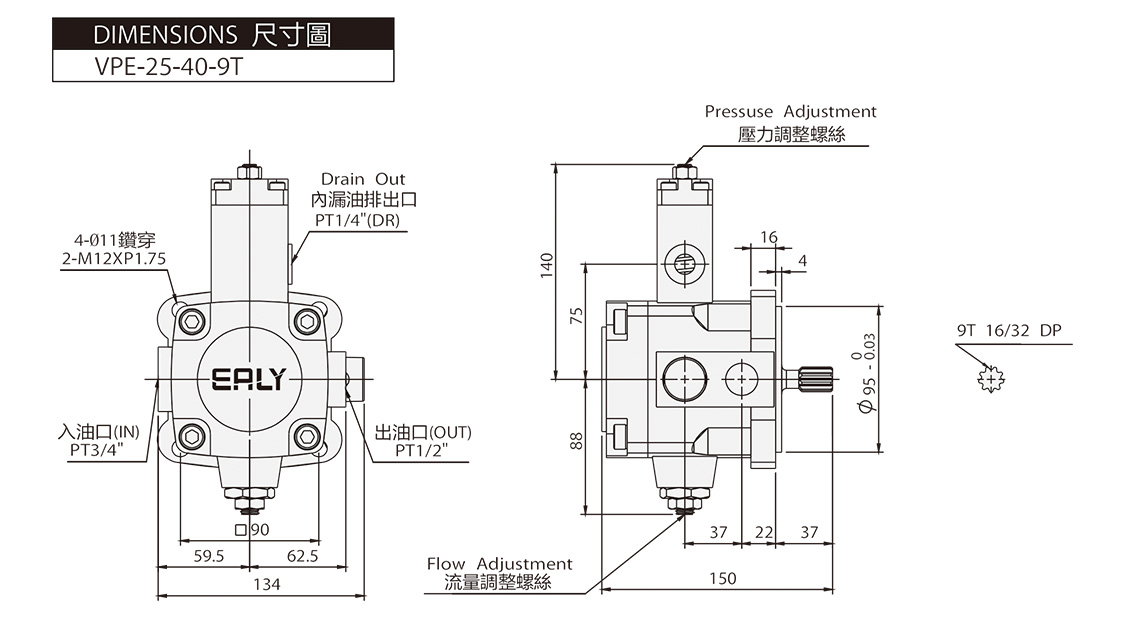

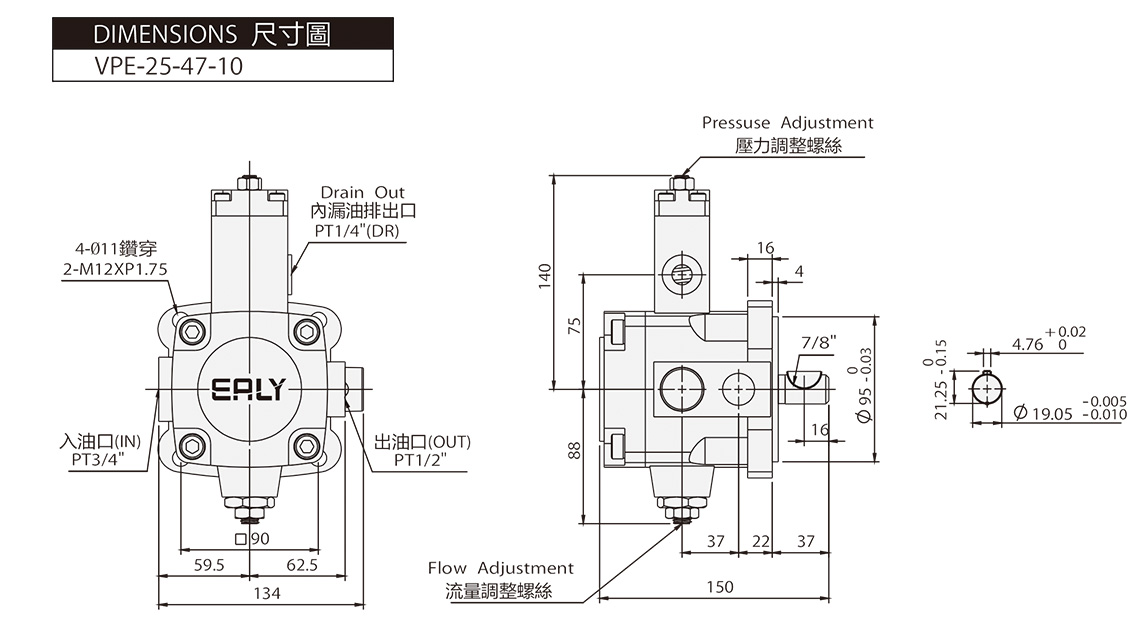

Dimensions
