Heavy Oil Lubrication Pumps
HVAVY OIL LUBRICATION PUMPS
Heavy Oil Lubrication Pumps / Heavy Oil Lubrication Pumps VOP -
| MODEL | Delivery capacity (c.c/rew) |
Mounting | Adjustable type |
External oil return |
Pressure range kgf/cm² |

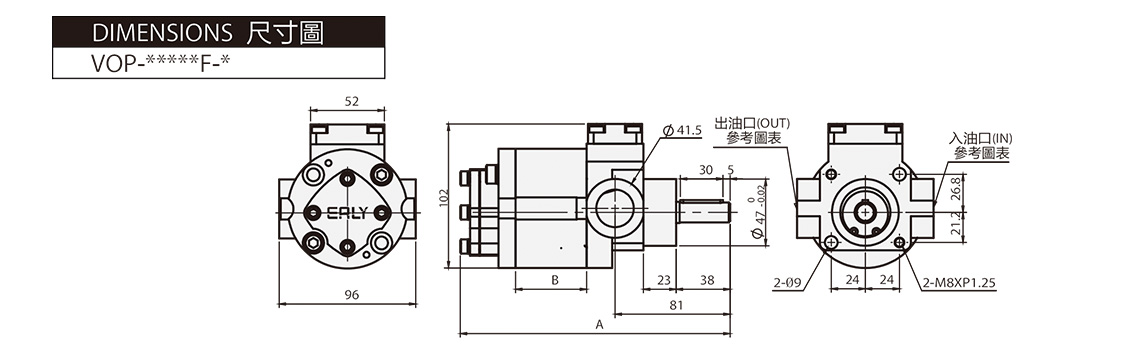

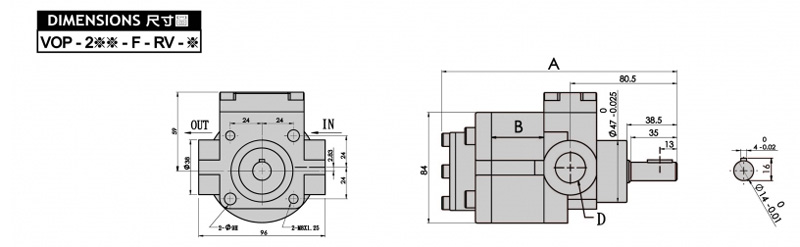

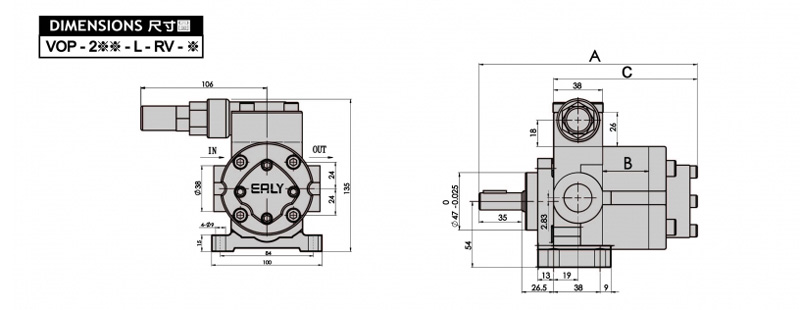

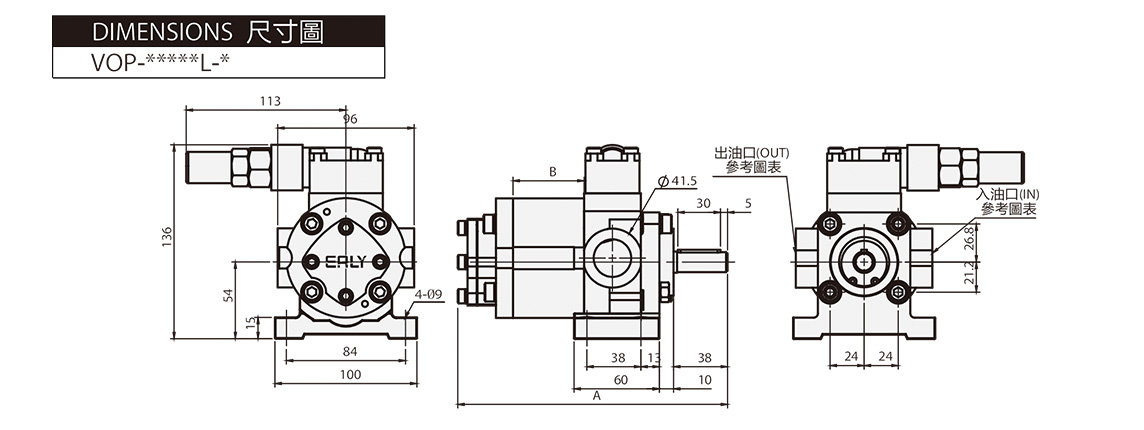

Length size | ||
|---|---|---|---|---|---|---|---|---|
| VOP-2 | VOP-2** | Flow | -* | -RV | -D | -* | A | B |
| VOP-2 | VOP-203 | 3 | F : Flange L : Foot |
None RV |
None : Standard Spec D : External Return Oil |
A：3~8 kgf/cm² B：5~20 kgf/cm² C：12~25 kgf/cm² |
145 | 83 |
| VOP-204 | 4 | 148 | 86 | |||||
| VOP-206 | 6 | 153 | 91 | |||||
| VOP-208 | 8 | 158 | 96 | |||||
| VOP-210 | 10 | 160 | 101 | |||||
| VOP-212 | 12 | 168 | 106 | |||||
| VOP-216 | 16 | 178 | 116 | |||||
| VOP-220 | 20 | 188 | 126 | |||||
VOP Speed–Flow Rate
| Model | Delivery capacity (c.c/rew) | Max. pressure kgf/cm² |
Max. speed (rpm) |
||
|---|---|---|---|---|---|
| Speed of Rotation ( rpm ) | |||||
| cc/rev | 1500 | 1800 | |||
| VOP-203 | 3 | 4.5 | 5.4 | 25 | 1800 |
| VOP-204 | 4 | 6.0 | 7.2 | ||
| VOP-206 | 6 | 9.0 | 10.8 | ||
| VOP-208 | 8 | 12.0 | 14.4 | ||
| VOP-210 | 10 | 15.0 | 18.0 | ||
| VOP-212 | 12 | 18.0 | 21.6 | ||
| VOP-216 | 16 | 24.0 | 28.8 | ||
| VOP-220 | 20 | 30.0 | 36.0 | ||
