HVAVY OIL LUBRICATION PUMPS

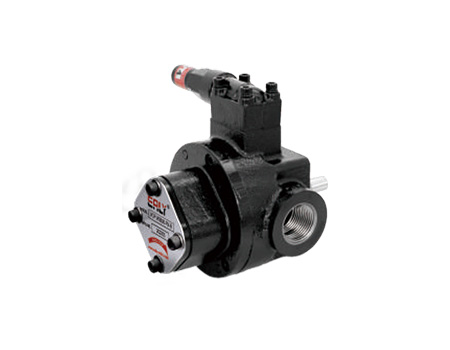

Heavy Oil Lubrication Pumps / Heavy Oil Lubrication Pumps VOP - W3 ( TK Centre Water out )
| MODEL | Delivery capacity (c.c/rew) |
Mounting | Adjustable type |
External oil return |
Pressure range kgf/cm² |
Weight kgf | ||
|---|---|---|---|---|---|---|---|---|
| VOP-W | 30** | Flow | -* | -RV | -D | -* | Model | Weight |
| VOP-W | 3015 | 15 | F : Flange Flange |
None RV |
None : Standard Spec D : External Return Oil |
A：3~8 kgf/cm² B：5~20 kgf/cm² C：12~25 kgf/cm² |
3015 | 7.0 |
| 3020 | 20 | 3020 | 7.6 | |||||
| 3030 | 30 | 3030 | 8.6 | |||||
| 3040 | 40 | 3040 | 9.1 | |||||
VOP-W3 Speed–Flow Rate
| Model | Delivery capacity (c.c/rew) | Max. pressure kgf/cm² |
Max. speed (rpm) |
||
|---|---|---|---|---|---|
| Speed of Rotation ( rpm ) | |||||
| cc/rev | 1500 | 1800 | |||
| VOP-3015 | 15 | 22.5 | 27 | 25 | 1800 |
| VOP-3020 | 20 | 30 | 36 | ||
| VOP-3030 | 30 | 45 | 54 | ||
| VOP-3040 | 40 | 60 | 72 | ||
