Heavy Oil Lubrication Pumps / Heavy Oil Lubrication Pumps VOP - NW2

Heavy Oil Lubrication Pumps VOP - NW2
FEATURES
  • Centre Water out
  • Compact size, low noise, easy installation
  • Suitable for high viscosity oil.
  • Suitable for Machine Lubrication system, filtering system, and cooling system.
  • Designed as a semi-synthetic cutting fluid suitable for machine tools and lathes
Specifications
MODEL Delivery capacity
(c.c/rew)		 Adjustable
type		 External
oil return		 Pressure
range kgf/cm²		 Weight kgf
c.c/rev 1500 1800 F-RV -D -*
VOP-NW210 10 15 18 None
RV		 None : Standard Spec
D : External Return Oil		 30 kgf/cm² 4.3kg
VOP-NW212 12 18 21 4.5kg
VOP-NW216 16 24 28 4.8kg
VOP-NW220 20 30 36 5.3kg
Dimensions

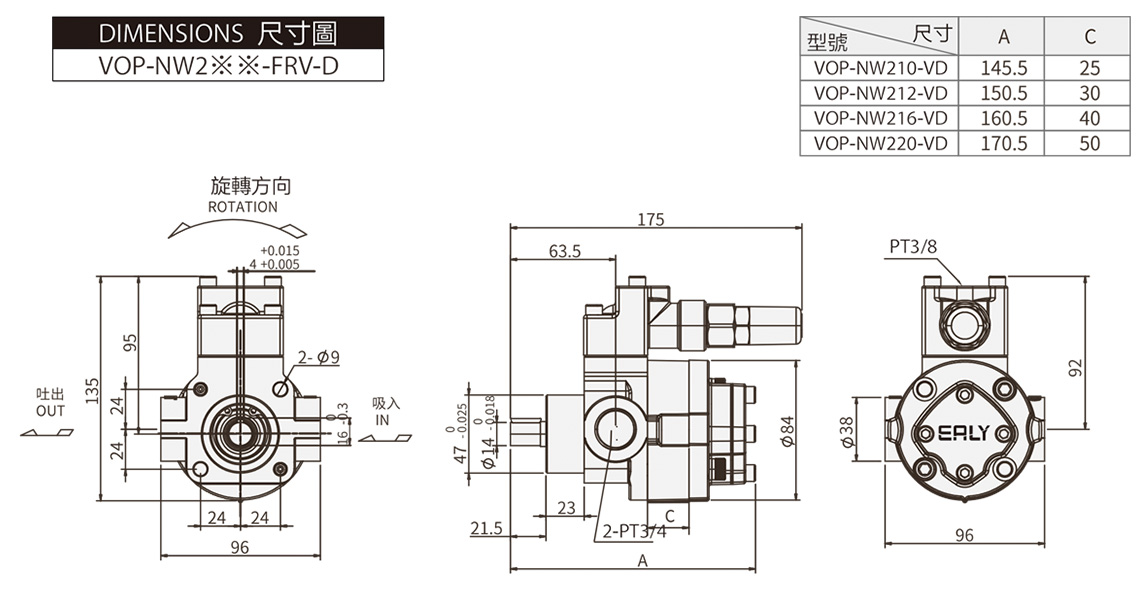

Heavy Oil Lubrication Pumps VOP - NW2 Dimensions
