Variable Displacement Vane Pumps
VARIABLE DISPLACEMENT VANE PUMPS

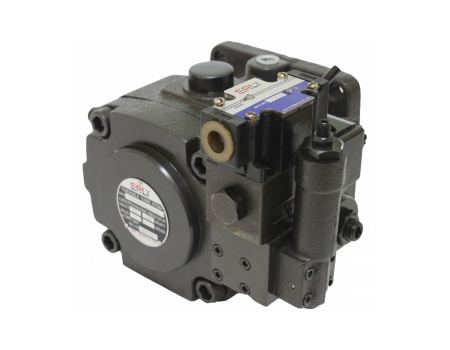

Variable Displacement Vane Pumps / High-Pressure Variable Pump ( Unload ) / VDC - 1C ( 2C )
| MODEL | Adjustable type | Mounting | Standard delivery l/min ( 1800rpm ) |
Adjusting pressure range kgf/cm² |
Design number |
|---|---|---|---|---|---|
| VDC- | * | -* | * | * | - * |
| VDC-1 | A : Normal B : Addition C : Unload |
F : Flange L : Foot |
20 25 30 40 |
A : 15~35 kgf/cm² B : 20~70 kgf/cm² C : 50~105 kgf/cm² D : 70~140 kgf/cm² |
20 : Parallel Key 9T : Spline 9TS : Without Sleeve |
| VDC-2 | 54 | 20 : Parallel Key | |||
| 70 | MAX Pressure : 105 kgf/cm² | ||||
| 86 | MAX Pressure : 70 kgf/cm² |
| Weight / Model | VDC-1C | VDC-2C | |
|---|---|---|---|
| WEIGHT kgf ( lbs ) | F : Flange | 11 kg | 27.1 kg |
| L : Foot | 14.3 kg | 33.8 kg | |
Speed MAX : 1800 r / min
Speed MIN : 800 r / min
