Variable Displacement Vane Pumps
VARIABLE DISPLACEMENT VANE PUMPS

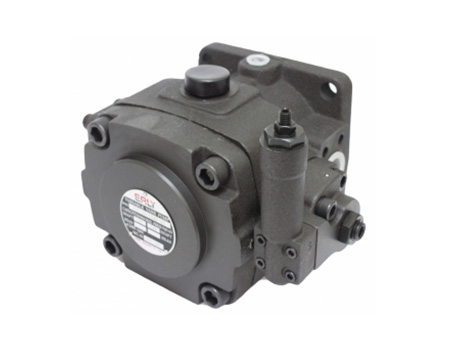

Variable Displacement Vane Pumps / High-Pressure Variable Pump / VDC-1A ( 2A )
| MODEL | Adjustable type | Mounting | Standard delivery l/min ( 1800rpm ) |
Adjusting pressure range kgf/cm² |
Design number |
|---|---|---|---|---|---|
| VDC- | * | -* | * | * | - * |
| VDC-1 | A : Normal B : Addition C : Unload |
F : Flange L : Foot |
20 25 30 40 |
A : 15~35 kgf/cm² B : 20~70 kgf/cm² C : 50~105 kgf/cm² D : 70~140 kgf/cm² |
20 : Parallel Key 9T : Spline 9TS : Without Sleeve |
| VDC-2 | 54 | 20 : Parallel Key | |||
| 70 | MAX Pressure : 105 kgf/cm² | ||||
| 86 | MAX Pressure : 70 kgf/cm² |
| Weight / Model | VDC-1A.1B | VDC-2A.2B | |
|---|---|---|---|
| WEIGHT kgf ( lbs ) | F : Flange | 10.3 kg | 26.1 kg |
| L : Foot | 13.5 kg | 32.8 kg | |
Speed MAX : 1800 r / min
Speed MIN : 800 r / min
