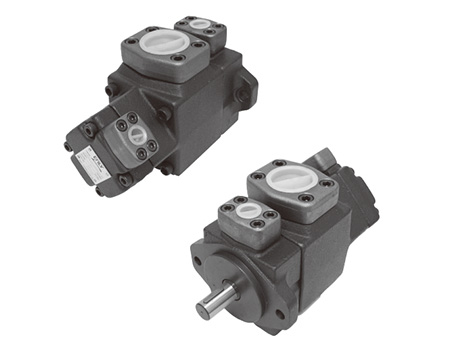

High-Low Pressure Tandem Pump PV2R12
High-Low Pressure Tandem Pump PV2R12
FEATURES
  • These pumps are designed for low noise level and high volume efficiency.
  • Smooth running high stability and durability.
  • Inlet resistances are particularly considered in input-port design.
  • Maximum working pressure up to 210 kgf/cm² ( 1000 psi ).
Specifications
MODEL Delivery
capacity
(c.c/rew) 		Delivery
capacity
(c.c/rew) 		Mounting Rotating
direction		 Suction
portion		 Discharge portion
( Shaft end )
PV2R1		 Discharge portion
( Cover end ) PV2R2		 Design number
PV2R12 * * * * * * * -*
PV2R12 ( PV2R2 )
26~65		 ( PV2R1 )
6 ~31		 F : Flange
L : Foot		 R : CW
L : CCW 		( PV2R1 )
E : Left 45° Upward		 ( PV2R2 )
A : Upward
B : Downward
R : Right side
L : Left side 		40
Weight / Model PV2R12
WEIGHT kgf ( lbs ) F : Flange 26.3 kg
L : Foot 31.2 kg

PV2R12 ( PV2R1 + PV2R2 )
MODEL
CODING		 Delivery capacity (c.c/rew) Allowable rotational
speed (rpm)		 Max.
pressure
kgf/cm²
MAX Pressure		 In / Out
Speed of Rotation ( rpm ) Max Min Out In
1000 1200 1500 1800
PV2R1-06 5.8 6.9 8.7 10.4 1800 900 210 1/2" 2"
PV2R1-08 8.1 9.7 12.1 14.6
PV2R1-10 9.4 11.3 14.1 16.9
PV2R1-12 12.2 14.6 18.3 21.9
PV2R1-14 13.6 17.1 21.5 25.7
PV2R1-17 16.6 20.5 25.6 30.7
PV2R1-19 18.6 23.0 28.8 34.5
PV2R1-23 22.7 27.9 34.9 41.9
PV2R1-25 25.3 31.3 39.1 46.9
PV2R1-31 31.0 37.3 46.6 -
PV2R2-26 26.2 31.4 39.3 47.1 1800 900 210 3/4" 2"
PV2R2-33 33.0 38.5 48.1 57.7
PV2R2-38 38.2 45.8 57.3 68.7
PV2R2-41 41.3 49.2 61.5 73.8
PV2R2-47 47.2 57.8 71.4 86.7
PV2R2-53 52.3 62.7 78.4 94.1
PV2R2-59 60.2 72.7 90.3 108.3
PV2R2-65 65.3 78.3 97.9 117.5

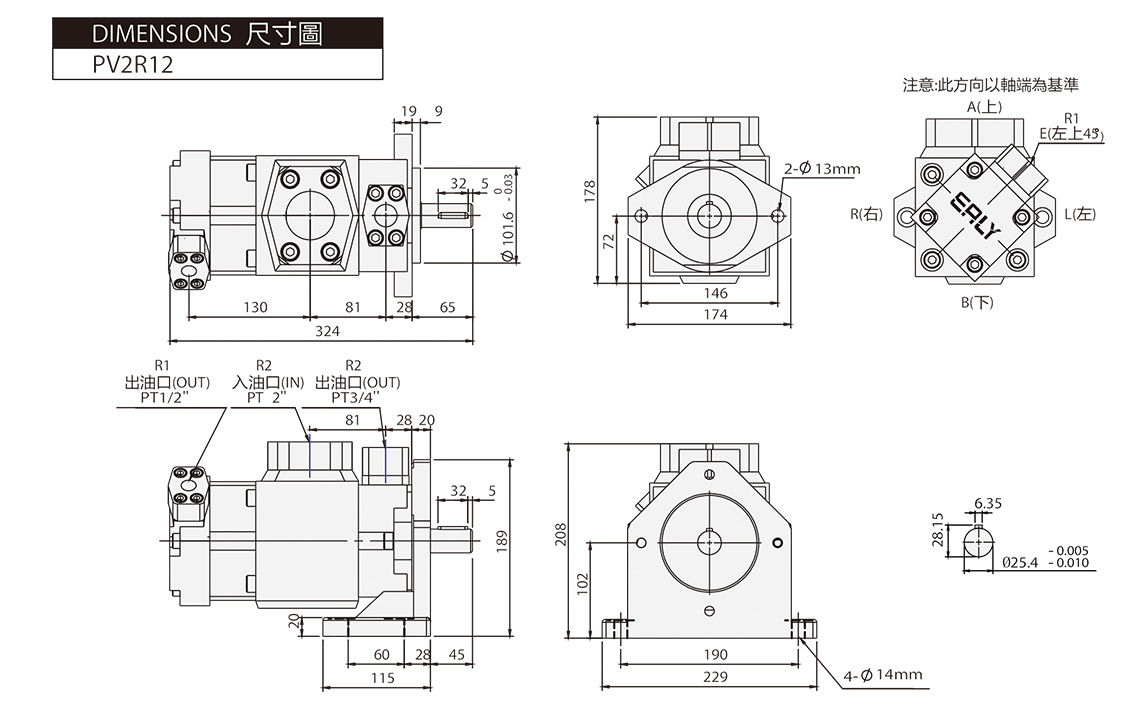

Dimensions

High-Low Pressure Tandem Pump PV2R12 Dimensions
