Fixed Displacement Vane Pumps
FIXED DISPLACEMENT VANE PUMPS
Fixed Displacement Vane Pumps / High-Pressure Fixed Pump / PV2R1 - ( PV2R2 )
| MODEL | Delivery capacity (c.c/rew) |
Mounting | Rotating direction |
Discharge portion ( Shaft end ) |
Suction portion ( Cover end ) |
Design number |
|---|---|---|---|---|---|---|
| PV2R* | * | * | * | * | * | -* |
| PV2R1 | 6 ~ 31 | F : Flange L : Foot |
R : CW L : CCW |
A : Upward B : Downward R : Right side L : Left side |
A : Upward B : Downward R : Right side L : Left side |
10 |
| PV2R2 | 26 ~ 65 |
| Weight / Model | PV2R1 | PV2R2 | |
|---|---|---|---|
| WEIGHT kgf ( lbs ) | F : Flange | 9.2 kg | 18.2 kg |
| L : Foot | 10.7 kg | 23 kg | |
Speed MAX : 1800 r / min
Speed MIN : 800 r / min

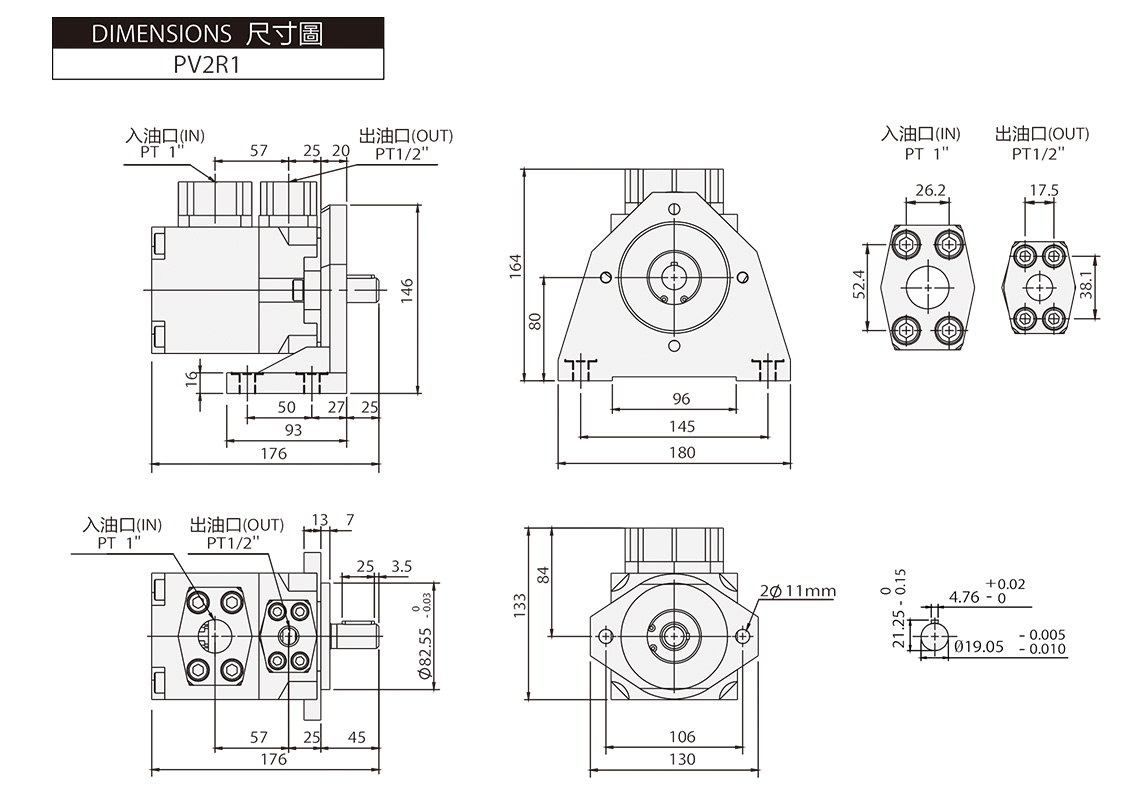

PV2R1
| MODEL CODING |
Delivery capacity (c.c/rew) | Allowable rotational speed ( rpm ) |
Max. pressure kgf/cm² MAX Pressure |
In / Out | ||||
|---|---|---|---|---|---|---|---|---|
| Speed of Rotation ( rpm ) | Max | Min | ||||||
| 1000 | 1200 | 1500 | 1800 | |||||
| PV2R1-06 | 5.8 | 6.9 | 8.7 | 10.4 | 1800 | 1200 | 210 | In：1" Out : 1/2" |
| PV2R1-08 | 8.1 | 9.7 | 12.1 | 14.6 | ||||
| PV2R1-10 | 9.4 | 11.3 | 14.1 | 16.9 | ||||
| PV2R1-12 | 12.2 | 14.6 | 18.3 | 21.9 | 1800 | 900 | ||
| PV2R1-14 | 13.6 | 17.1 | 21.5 | 25.7 | ||||
| PV2R1-17 | 16.6 | 20.5 | 25.6 | 30.7 | ||||
| PV2R1-19 | 18.6 | 23 | 28.8 | 34.5 | ||||
| PV2R1-23 | 22.7 | 27.9 | 34.9 | 41.9 | ||||
| PV2R1-25 | 25.3 | 31.3 | 39.1 | 46.9 | ||||
| PV2R1-31 | 31 | 37.3 | 46.6 | - | ||||

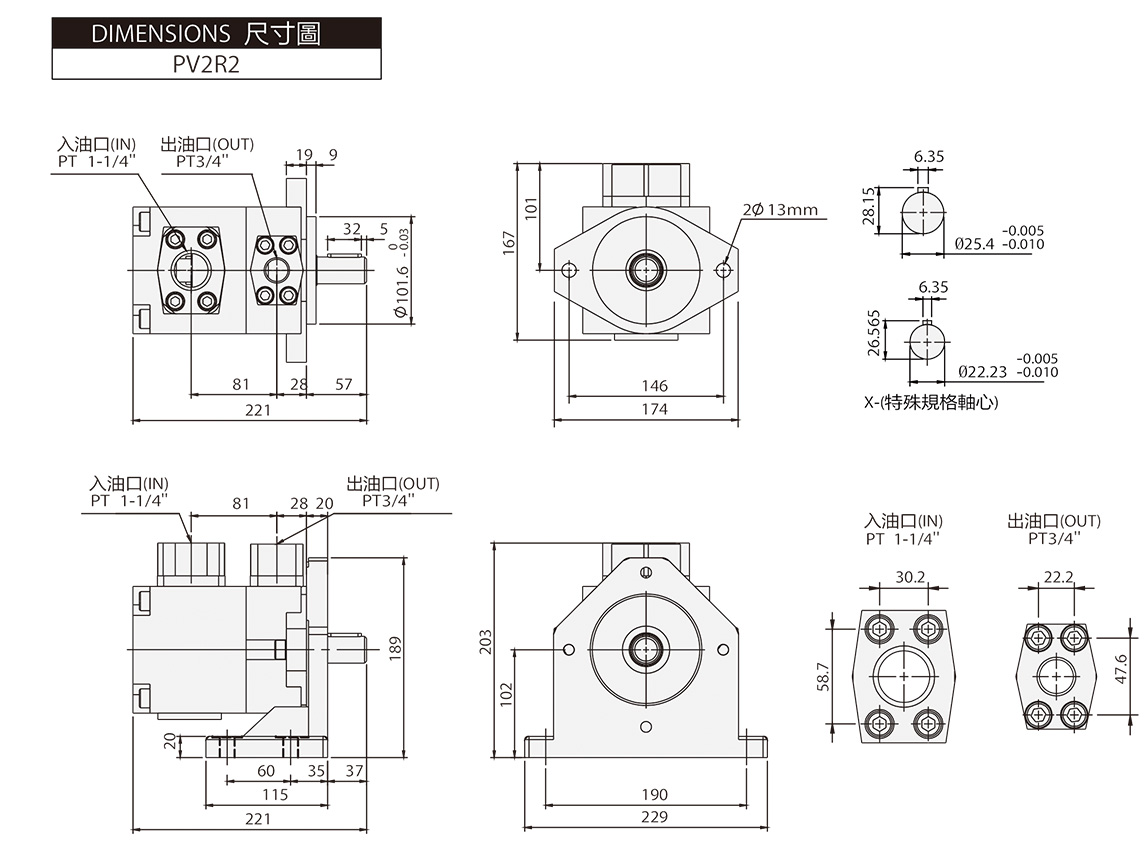

PV2R2
| MODEL CODING |
Delivery capacity (c.c/rew) | Allowable rotational speed ( rpm )/th> | Max. pressure kgf/cm² MAX Pressure |
In / Out | ||||
|---|---|---|---|---|---|---|---|---|
| Speed of Rotation ( rpm ) | Max | Min | ||||||
| 1000 | 1200 | 1500 | 1800 | |||||
| PV2R2-26 | 26.2 | 31.4 | 39.3 | 47.1 | 1800 | 900 | 210 | In : 1-1/4" Out : 3/4" |
| PV2R2-33 | 33.0 | 38.5 | 48.1 | 57.7 | ||||
| PV2R2-38 | 38.2 | 45.8 | 57.3 | 68.7 | ||||
| PV2R2-41 | 41.3 | 49.2 | 61.5 | 73.8 | ||||
| PV2R2-47 | 47.2 | 57.8 | 71.4 | 86.7 | ||||
| PV2R2-53 | 52.3 | 62.7 | 78.4 | 94.1 | ||||
| PV2R2-59 | 60.2 | 72.7 | 90.3 | 108.3 | ||||
| PV2R2-65 | 65.3 | 78.3 | 97.9 | 117.5 | ||||
