Fixed Displacement Vane Pumps

FIXED DISPLACEMENT VANE PUMPS

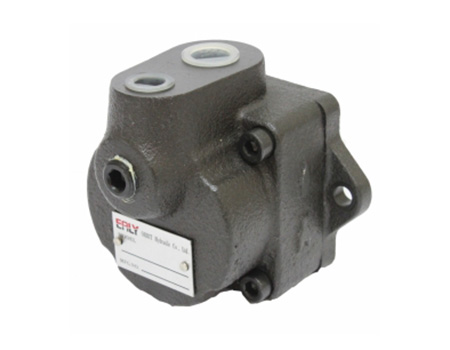

Fixed Displacement Vane Pumps / Low-Pressure Fixed Pump / FA1 - ( FB1 )

FEATURES

Light weight compact size but large flow rate economical and durable pumps especially for machine tools and single purpose machines.
High efficiency stability on low to high pressure adjustment.
Wear resistance with less heat on high speed rotation.
By using CAM RING, low pulse on output pressure with constant flow rate.
Low inlet resistance two selections on the pump of input and output pipings ( same directions and / or 90° apart )
Low noise level.

MODEL	Mounting	Discharge portion ( Shaft end )	Rotating direction	Design number	Max. pressure kgf	Weight kgf
F*1	-*	*	*	-*	*	F : Flange	L : Foot

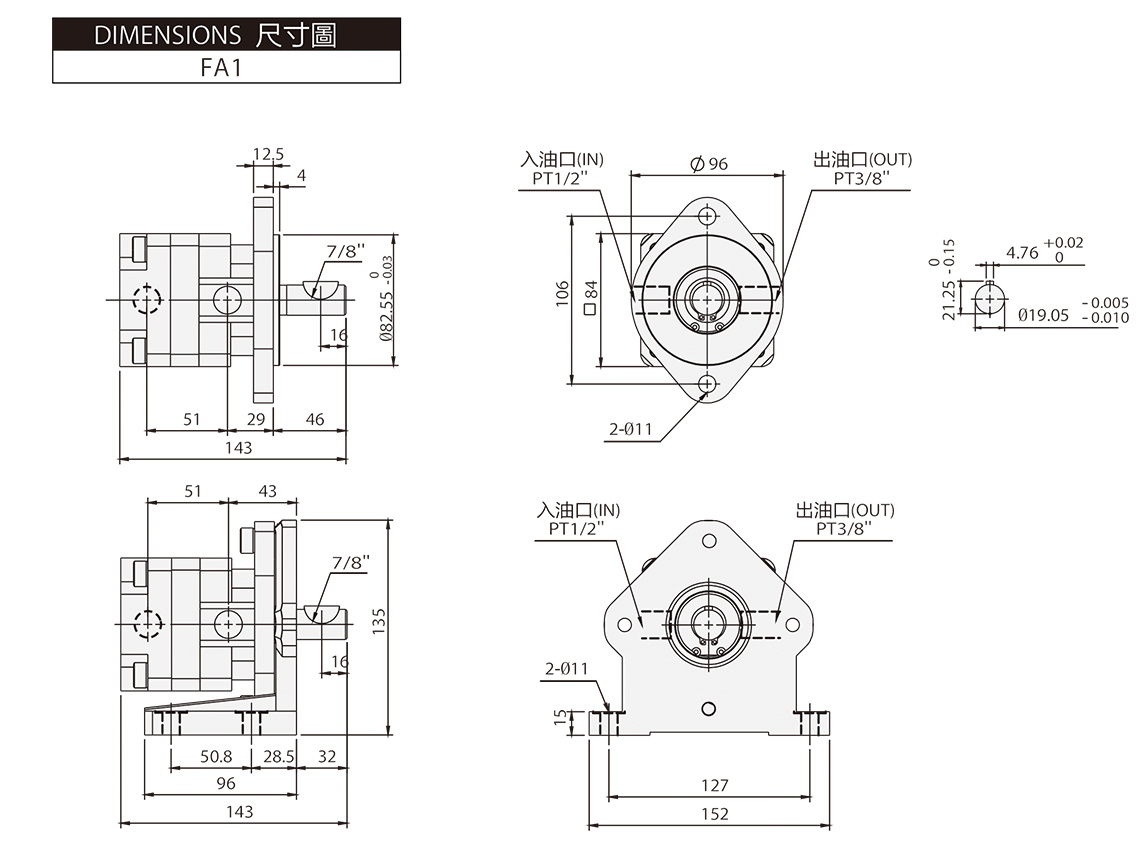

FA1	F : Flange L : Foot	5 8 11 13	R : CW L : CCW	10	70 kgf/cm²	4.7 kg	/

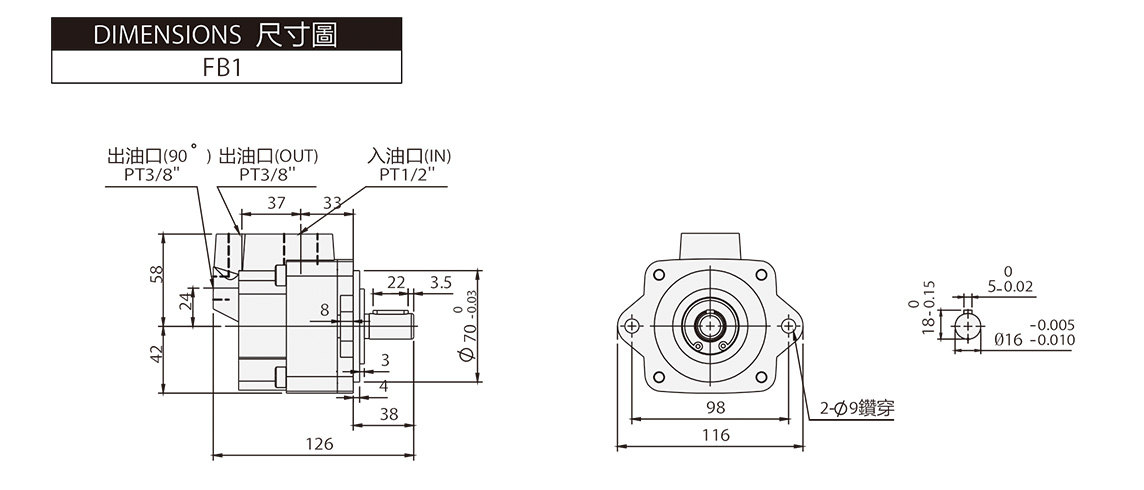

FB1	F : Flange	5 7 12	R : CW	10	70 kgf/cm²	3.5 kg	/

Speed MAX : 1800 r / min
Speed MIN : 900 r / min
