High-Low Tandem Fixed Pump 50T + PV2R1
FEATURES
  • This series of pumps provide system design of high flow, low noise level and high volume efficiency.
  • This series of pump can be matched with a low flow gear pump to build into a high-low system and have a function of saving horse power.
  • Requires only one single shaft electric motor.
    Easy the installation work for building a high-low pressure circuit system.
Specifications
MODEL Shaft end
(c.c/rew) 		Mounting Rotating
direction		 Discharge portion
( Shaft end ) 		Cover end
(c.c/rew) 		Delivery
capacity
(c.c/rew)		 Shaft end
50T -* * * * -* -* -*
50T 7.12.14.17.
20.23.26.30.
36.40.43		 F : Flange
Flange
L : Foot
Foot		 R : CW
L : CCW 		R : Right side
L : Left side
( normal )		 R1 6 ~ 31 Ø 22
Weight / Model 50T+R1
Weight kgf F : Flange 19.5 kg
L : Foot 20.4 kg
Dimensions

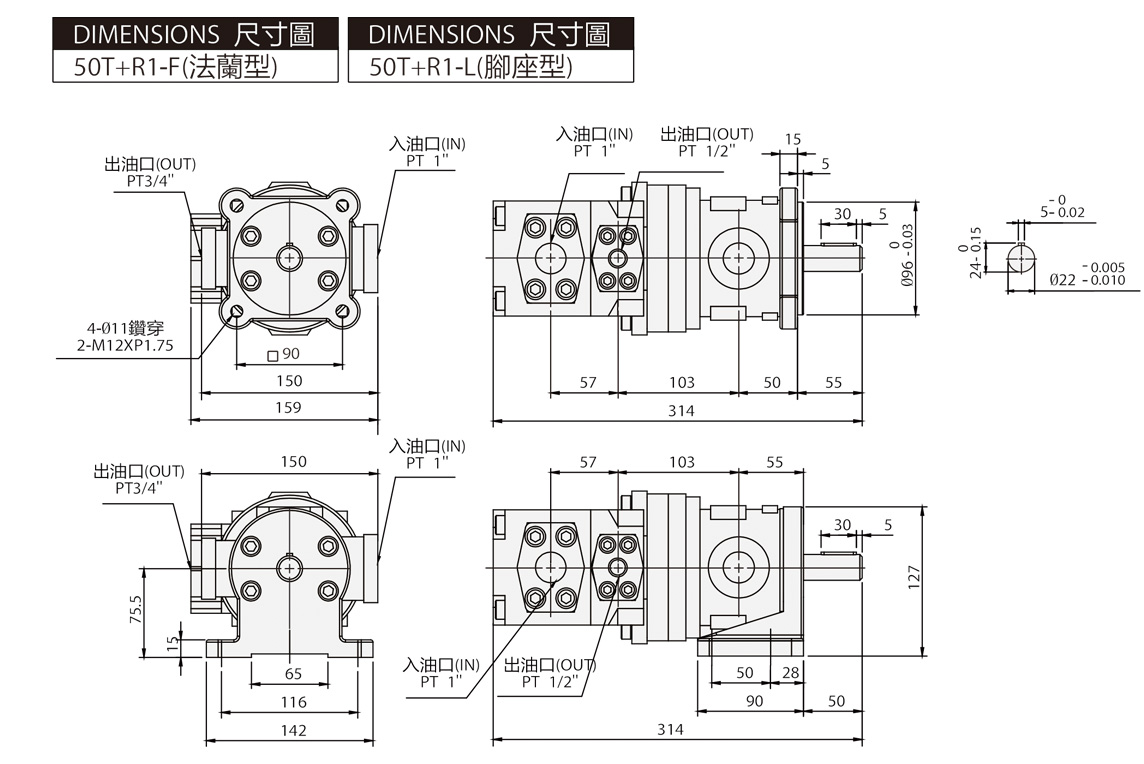

High-Low Tandem Fixed Pump 50T + PV2R1 Dimensions
