Fixed Displacement Vane Pumps / High-Low Pressure Tandem Pump / 50T + ( PA. PB )

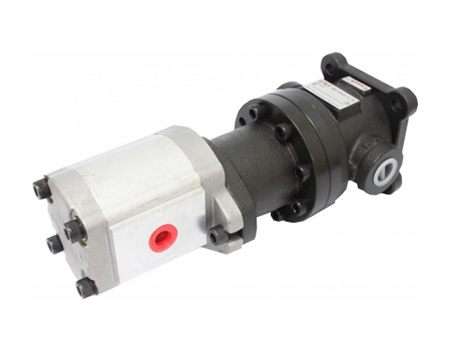

High-Low Pressure Tandem Pump 50T + ( PA. PB )
High-Low Pressure Tandem Pump 50T + ( PA. PB )
FEATURES
  • This series of pumps provide system design of high flow, low noise level and high volume efficiency.
  • This series of pump can be matched with a low flow gear pump to build into a high-low system and have a function of saving horse power.
  • Requires only one single shaft electric motor.
    Easy the installation work for building a high-low pressure circuit system.
Specifications
MODEL Shaft end
(c.c/rew) 		Mounting Rotating
direction		 Discharge portion
( Shaft end ) 		Cover end
(c.c/rew) 		Delivery
capacity
(c.c/rew)		 Shaft end
50T -* * * * -* -* -*
50T 7.12.14.17.
20.23.26.30.
36.40.43		 F : Flange
Flange
L : Foot
Foot		 R : CW
L : CCW 		R : Right side
L : Left side
( normal )		 PA 2 ~ 12 X：Ø19.05
10：Ø22
PB.TSP 8 ~ 30
Weight / Model 50T+PA 50T+PB
Weight kgf F : Flange 10.2 kg 11.7 kg
L : Foot 11.2 kg 12.5 kg

PA PB Weight excludes rear gear pump

Dimensions

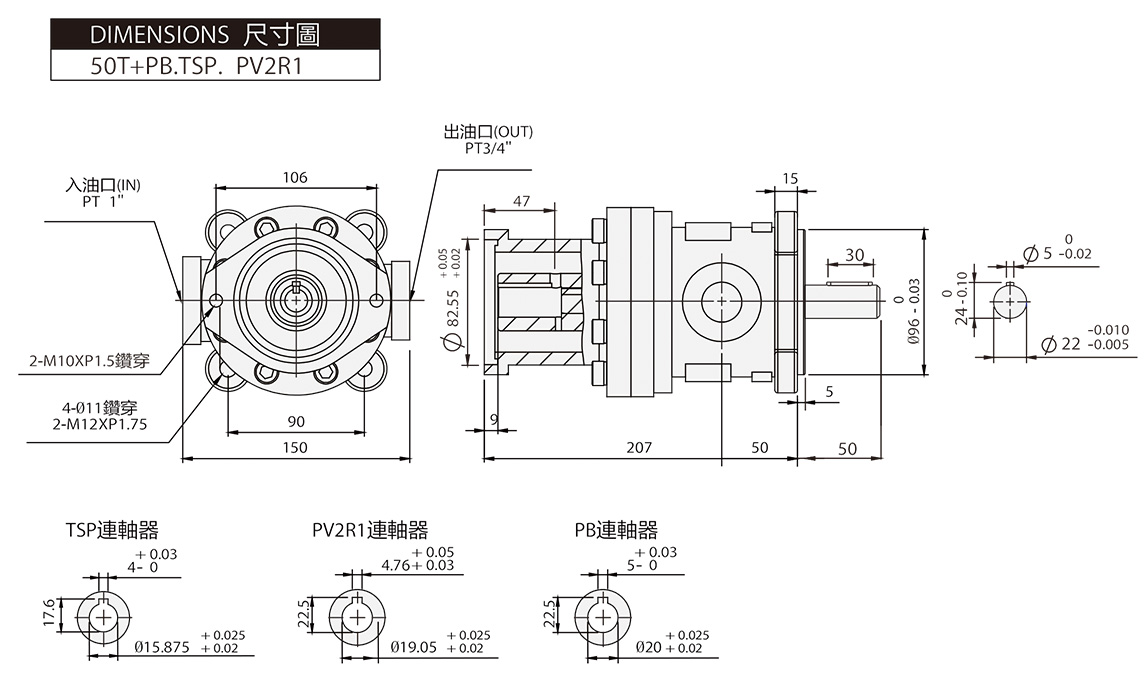

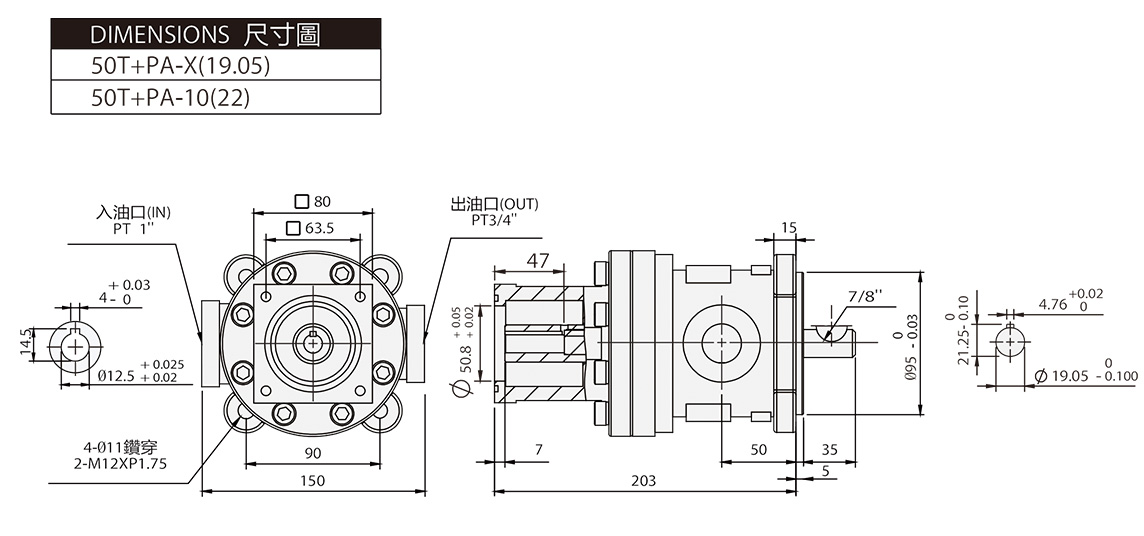

High-Low Pressure Tandem Pump 50T + ( PA. PB ) Dimensions

High-Low Pressure Tandem Pump 50T + ( PA. PB ) Dimensions
