Fixed Displacement Vane Pumps
FIXED DISPLACEMENT VANE PUMPS

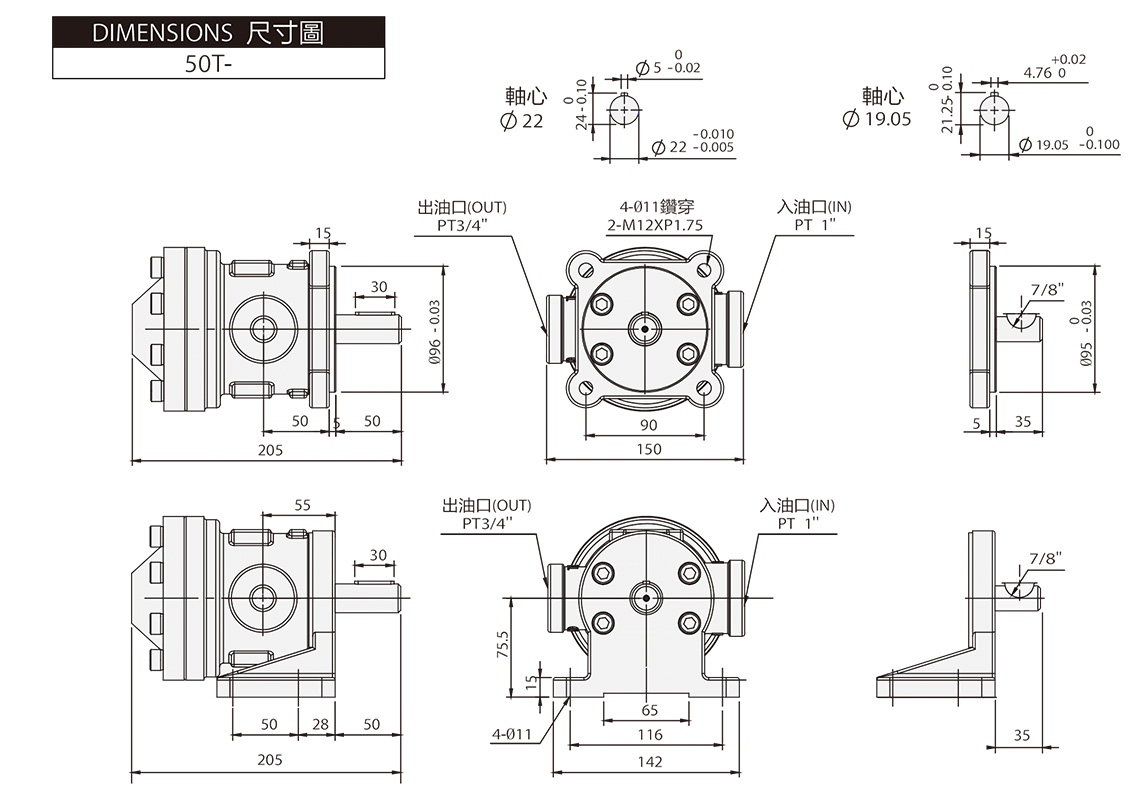

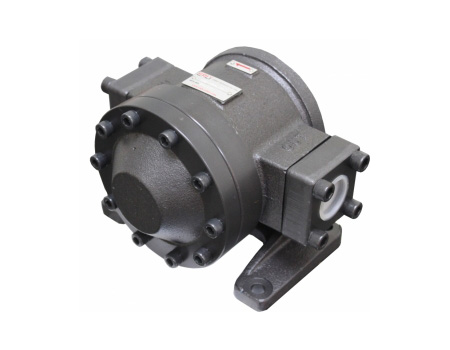

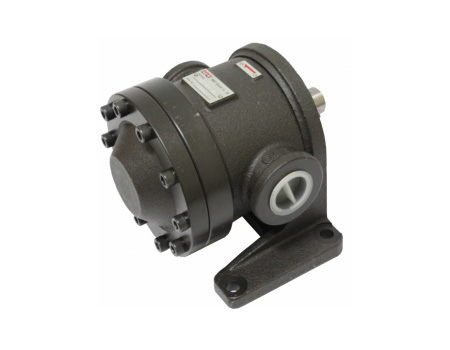

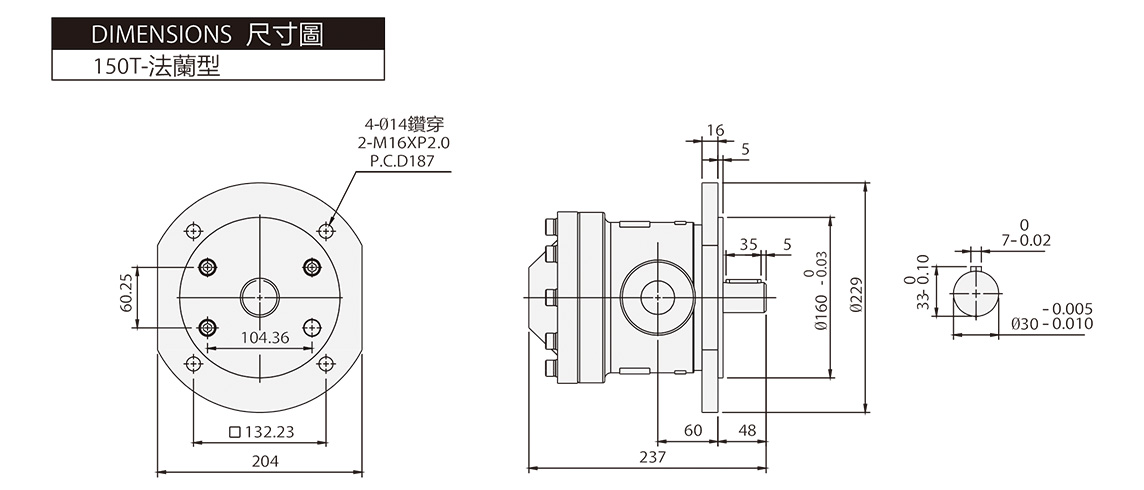

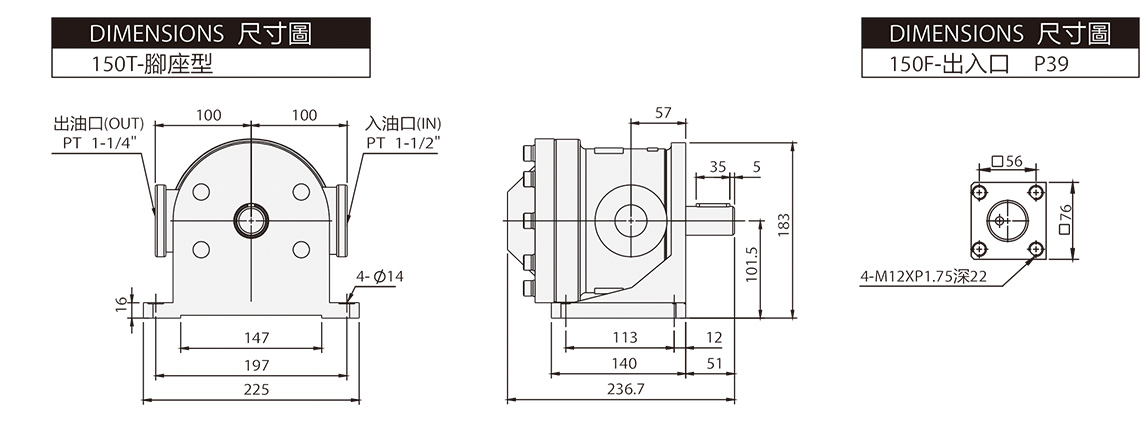

Fixed Displacement Vane Pumps / Low-Pressure Fixed Pump / 50T - ( 150T - )
| MODEL | Adjustable type |
Mounting | Rotating direction |
Discharge portion ( Shaft end ) |
Shaft end ( c.c/rew ) | Design number |
|---|---|---|---|---|---|---|
| * | -* | * | * | * | * | -* |
| 50T | 07.12.14.17 20.23.26.30 36.40.43 |
F : Flange L : Foot |
R : CW L : CCW |
R : Right side L : Left side ( normal ) |
None: Standard Spec Ø 22 X : Shaft Ø 19.05 |
10 |
| 150T |
48.61.75 94.116 125.150 |
Ø 30 | ||||
| 150F Flange |
| Weight / Model | 50T | 150T | 150F | |
|---|---|---|---|---|
| WEIGHT kgf | F : Flange | 9.8 kg | 24 kg | 27.5 kg |
| L : Foot | 10.7 kg | 24.2 kg | 27.5 kg | |
Speed MAX : 1800 r / min
Speed MIN : 800 r / min
50T Speed–Flow Rate
| MODEL CODING |
Delivery capacity ( c.c/rew ) | Allowable rotational speed ( rpm ) |
Max. pressure kgf/cm² |
In / Out | ||||
|---|---|---|---|---|---|---|---|---|
| Speed of Rotation ( rpm ) | Max. | Min. | ||||||
| 1000 | 1200 | 1500 | 1800 | |||||
| 50T-07 | - | 9.0 | 11.2 | 13.5 | 1800 | 1200 | 70 | IN : 1" OUT : 3/4" |
| 50T-12 | 12 | 14.4 | 18.0 | 21.6 | 1800 | 950 | ||
| 50T-14 | 14.6 | 17.5 | 21.7 | 26.1 | ||||
| 50T-17 | 17 | 20.3 | 25.5 | 31.5 | ||||
| 50T-20 | 20.1 | 24.1 | 30.2 | 36 | ||||
| 50T-23 | 23 | 27.6 | 34.5 | 41.4 | ||||
| 50T-26 | 26.2 | 31.4 | 39.3 | 47.2 | ||||
| 50T-30 | 30 | 36 | 44.5 | 53 | ||||
| 50T-36 | 36.2 | 43.4 | 54.3 | 64 | ||||
| 50T-40 | 40 | 48 | 60 | 72 | ||||
| 50T-43 | 43 | 51.6 | - | - | 1500 | 950 | ||
150T Speed–Flow Rate
| MODEL CODING |
Delivery capacity ( c.c/rew ) | Allowable rotational speed ( rpm ) |
Max. pressure kgf/cm² |
In / Out | ||||
|---|---|---|---|---|---|---|---|---|
| Speed of Rotation ( rpm ) | Max. | Min. | ||||||
| 1000 | 1200 | 1500 | 1800 | |||||
| 150T-48 | 48.3 | 57.9 | 72.4 | 86.9 | 1800 | 950 | 70 | IN : 1-1/2" OUT : 1-1/4" |
| 150T-61 | 61.5 | 73.8 | 92.2 | 110.7 | ||||
| 150T-75 | 75.5 | 90.6 | 113.2 | 135.9 | ||||
| 150T-94 | 94.2 | 113 | 141.3 | 169.5 | ||||
| 150T-116 | 116.3 | 139.6 | 174 | - | 1500 | |||
| 150T-125 | 125.2 | 150.2 | - | - | 1200 | |||
| 150T-150 | 150.2 | 180.3 | - | - | ||||
