Fixed Displacement Vane Pumps

FIXED DISPLACEMENT VANE PUMPS

Fixed Displacement Vane Pumps / High-Low Tandem / Low-Pressure Fixed Pump / 150T + 50T / 150T

FEATURES

This series of pumps provide system design of high flow, low noise level and high volume efficiency.
This series of pump can be matched with a low flow gear pump to build into a high-low system and have a function of saving horse power.
Requires only one single shaft electric motor.
Easy the installation work for building a high-low pressure circuit system.

MODEL	Shaft end (c.c/rew)	Mounting	Rotating direction	Discharge portion ( Shaft end )	Cover end (c.c/rew)	Delivery capacity (c.c/rew)
150T*	*	*	*	*	-*	-*
150T Inlet / Outlet Pipe Type 150F Inlet / Outlet Flange Type	48 61 75 94 116 125	F : Flange L : Foot	R : CW L : CCW	R : Right side L : Left side ( normal )	150T	48 ~ 125
	48 61 75 94 116 125	F : Flange L : Foot	R : CW L : CCW	R : Right side L : Left side ( normal )	50T	7 ~ 43

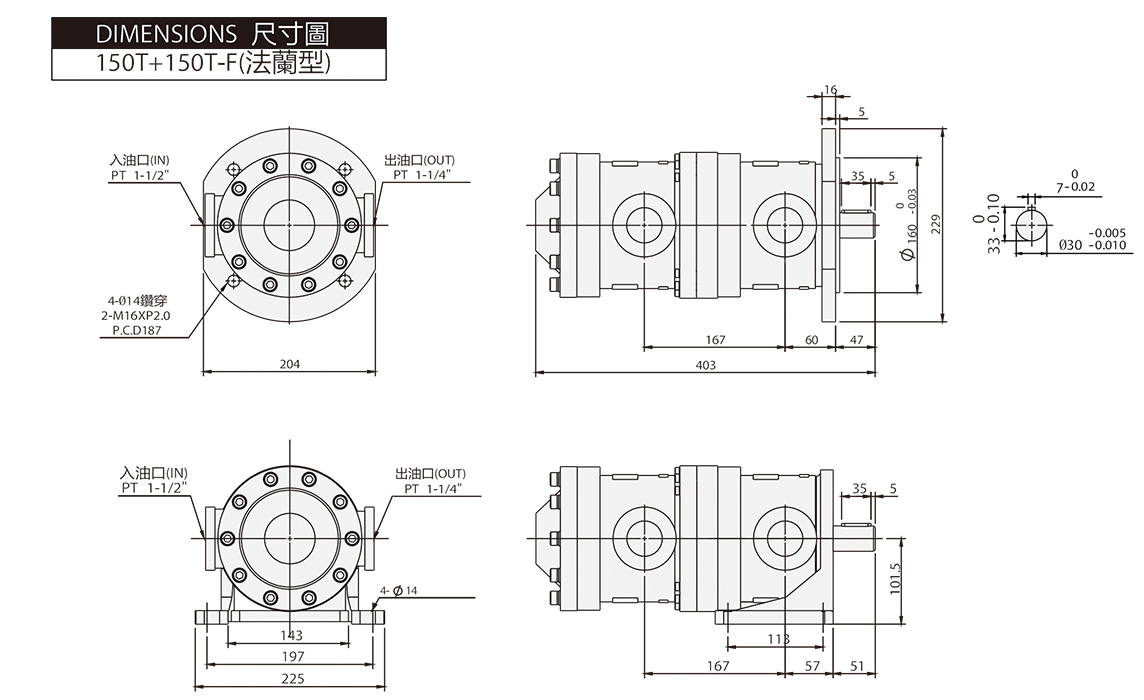

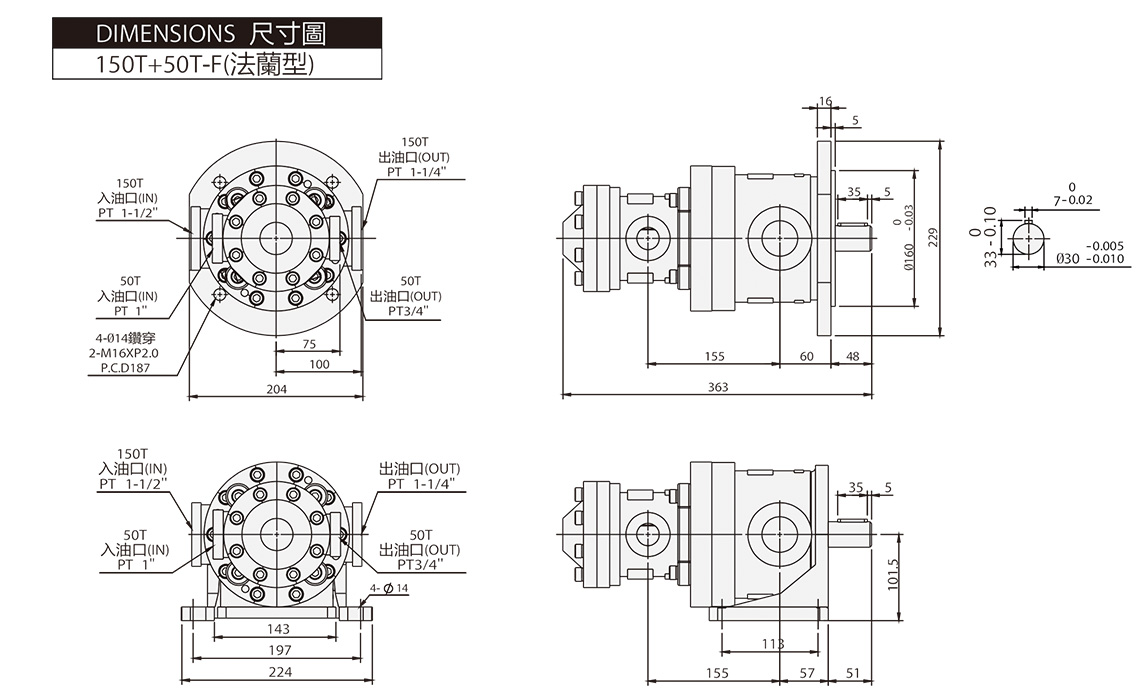

Weight / Model		150T+50T	150T+150T
Weight kgf	F : Flange	33.8 kg	46 kg
Weight kgf	L : Foot	34 kg	46.2 kg

* Weight excludes rear gear pump.
* If replaced with 150F, weight increases by 3 kg ( includes inlet & outlet flanges ).
* Using 150F on both sides adds 6 kg in total.
