FIXED DISPLACEMENT VANE PUMPS

Fixed Displacement Vane Pumps / High-Low Tandem / Low-Pressure Fixed Pump / 150 F ( Inlet / Outlet Flange )

Low-Pressure Fixed Pump 150 F ( Inlet / Outlet Flange )
FEATURES
  • These pumps are designed for low noise level and high volume efficiency.
  • Smooth running high stability and durability.
  • Inlet resistances are particularly considered in input-port design.
  • Maximum working pressure up to 70 kgf/cm² ( 1000 psi ).
Specifications
MODEL Adjustable
type		 Mounting Rotating
direction		 Discharge portion
( Shaft end )		 Shaft end
( c.c/rew )		 Design number
* -* * * * * -*

150F
Flange		 48.61.75
94.116
125.150		 F : Flange
L : Foot		 R : CW
L : CCW 		R : Right side
L : Left side ( normal )		 Ø 30 10
Weight / Model 150F
WEIGHT kgf F : Flange 27.5 kg
L : Foot 27.5 kg

Speed MAX : 1800 r / min
Speed MIN : 800 r / min

Dimensions

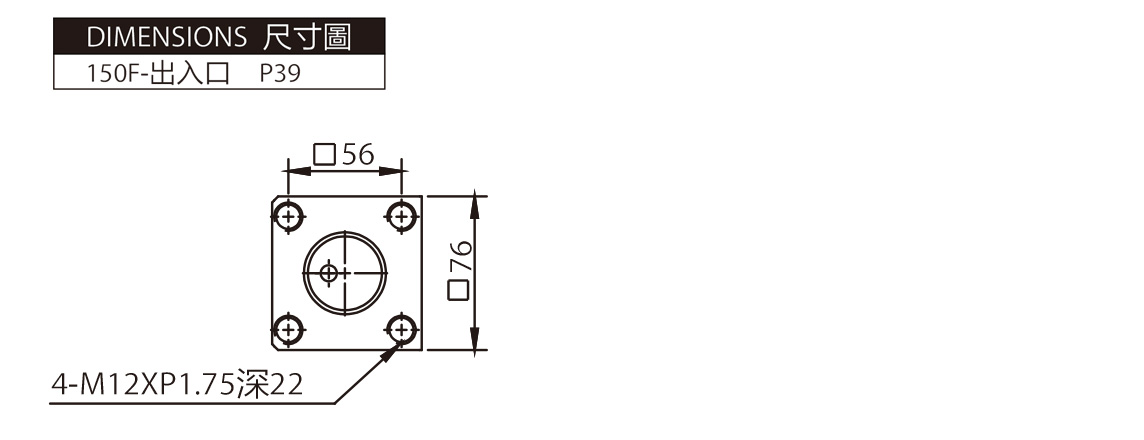

Low-Pressure Fixed Pump 150 F ( Inlet / Outlet Flange ) Dimensions
